DTC Toolbox v1.6

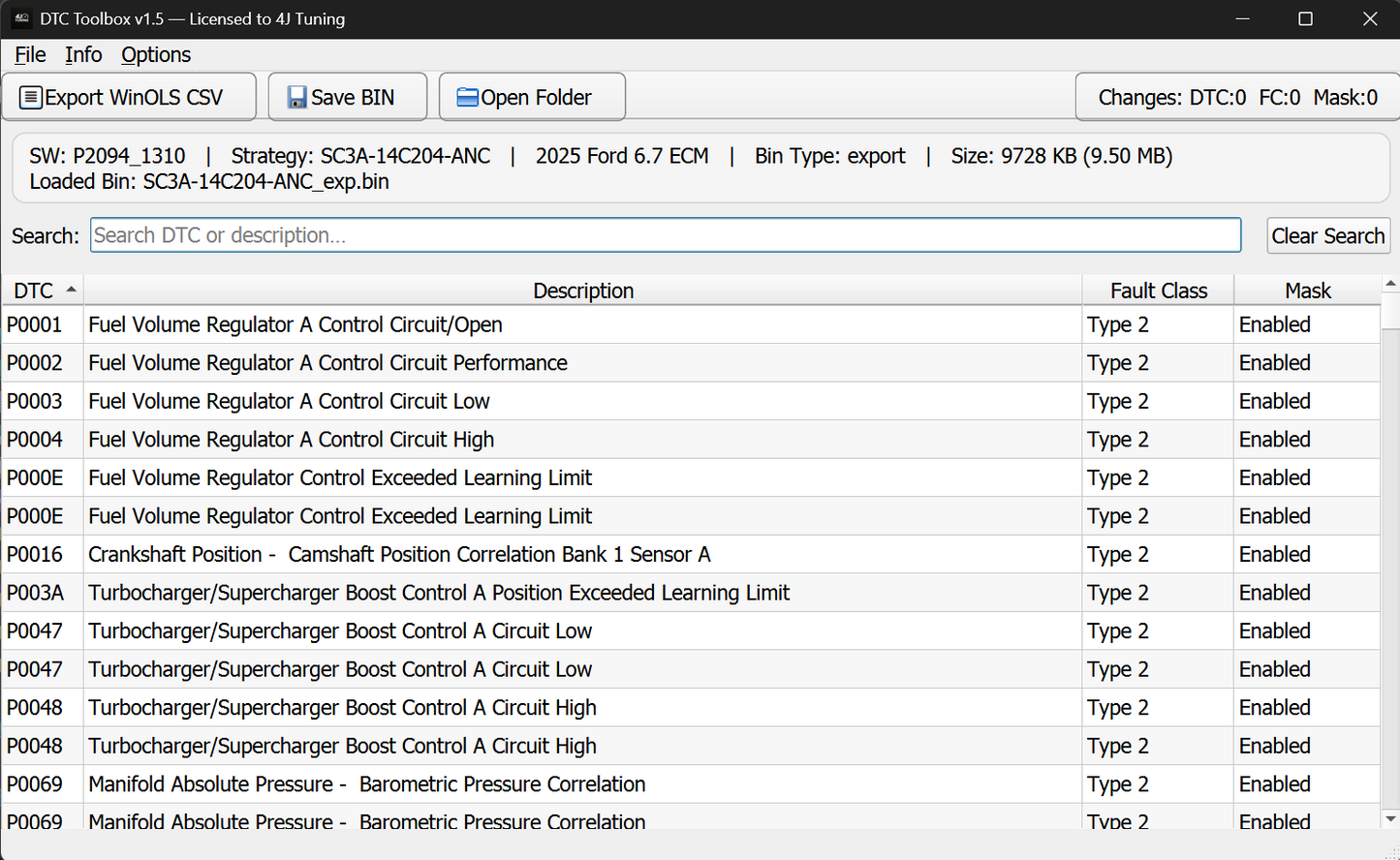

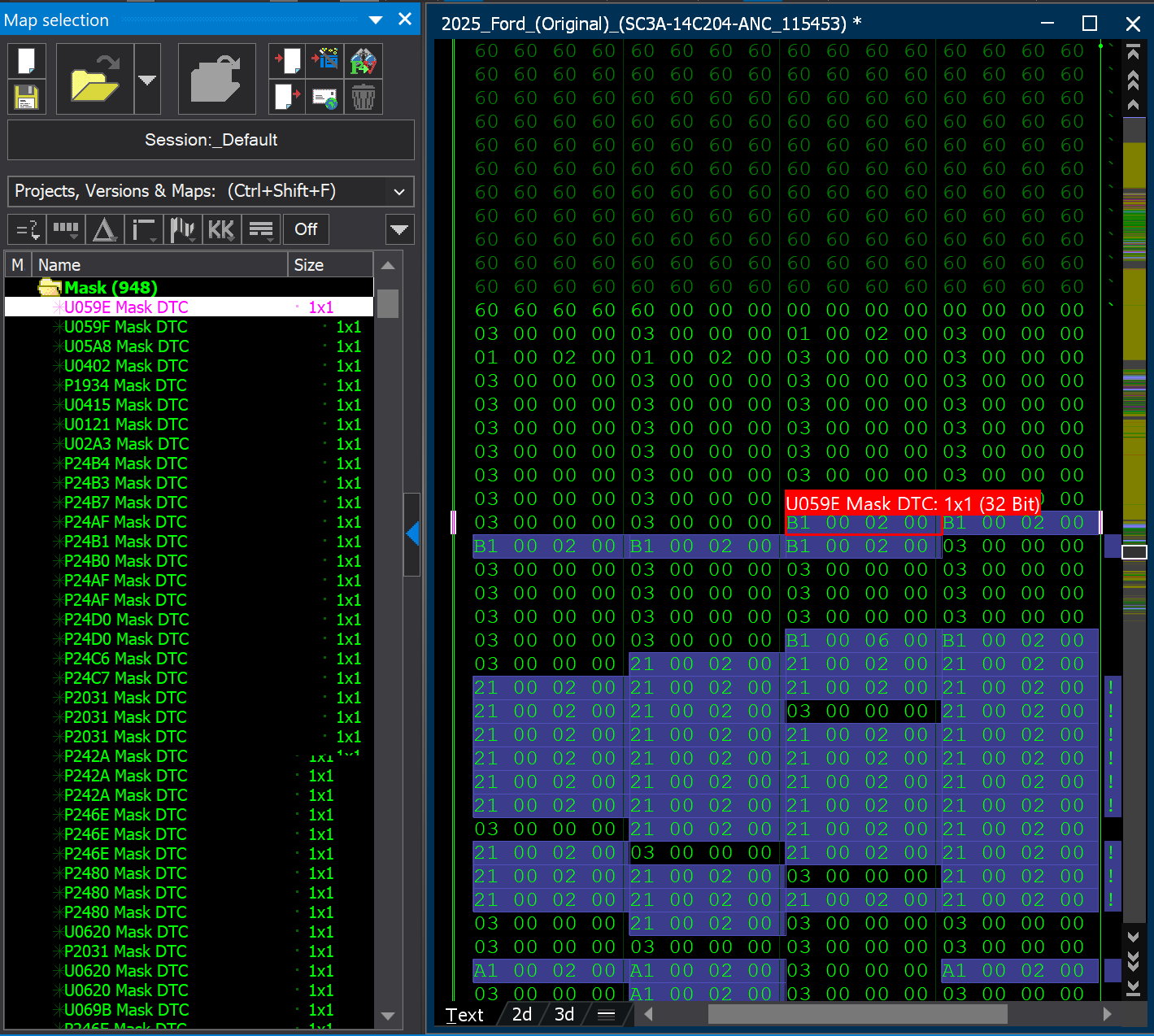

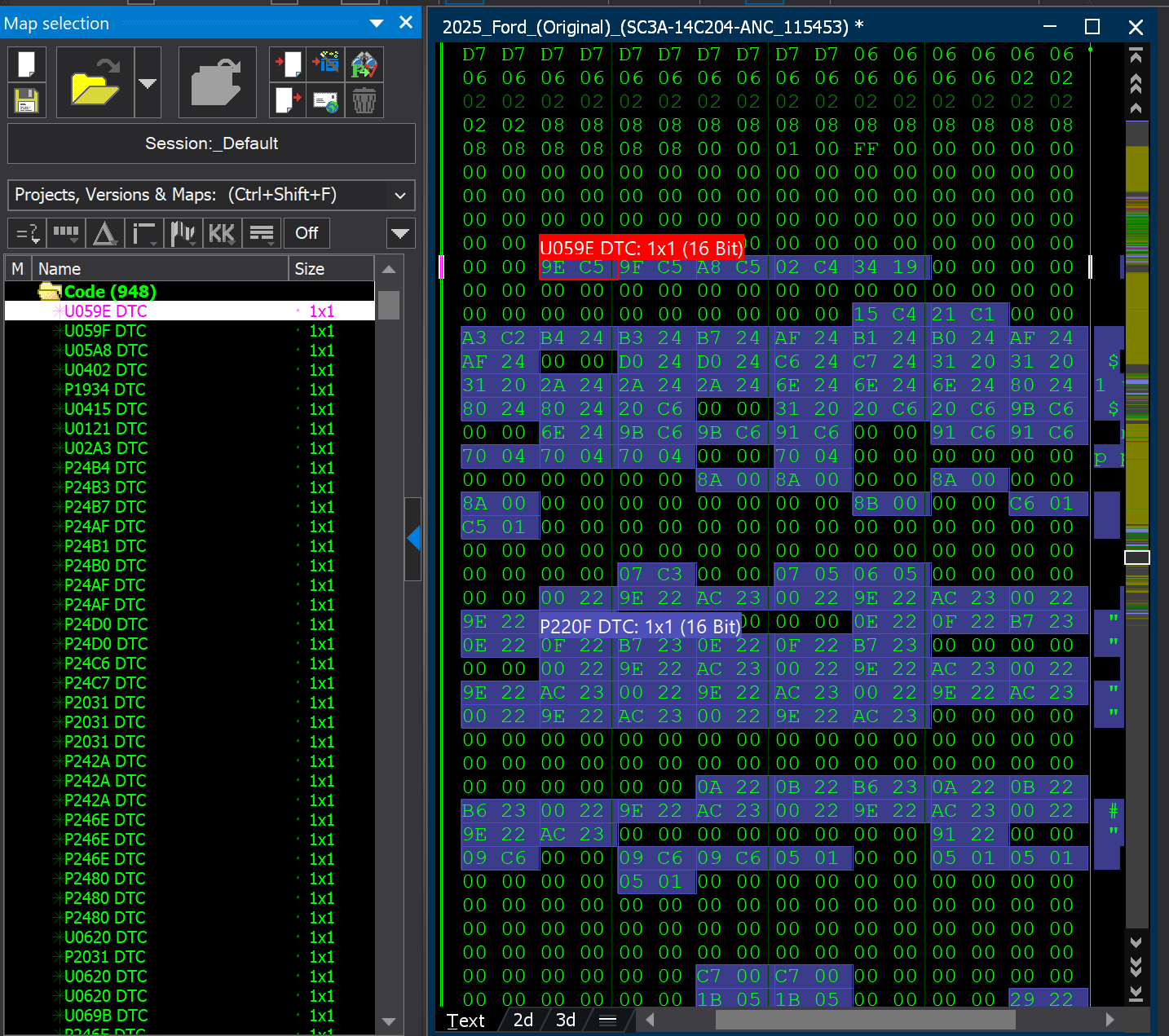

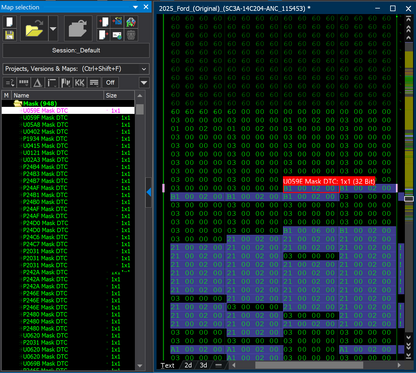

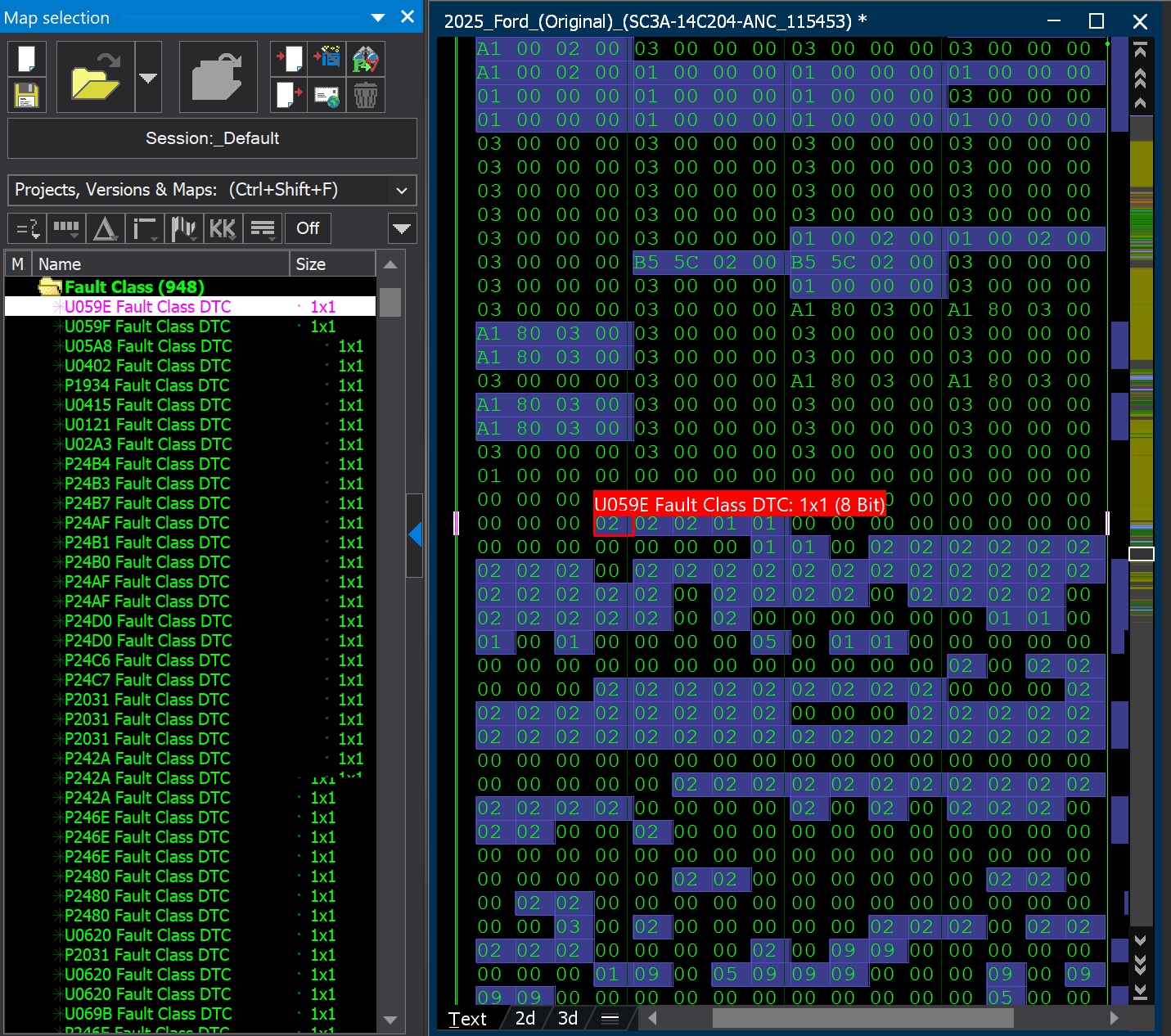

DTC Toolbox is a specialized application for managing diagnostic trouble codes within binary files. It offers robust tools for viewing and editing all DTCs found in both standard and export-size binary formats, enhancing the efficiency of tuning and diagnostic workflows. Users can export modified binary files while retaining the original versions. The app also enables exporting DTC data as CSV files compatible with WinOLS, producing detailed maps for DTCs, Fault Classes, and Masks with corresponding names and descriptions. Note that checksum corrections are not applied. DTC Toolbox operates under a single license per computer and permits DTC editing; 4J Tuning assumes no responsibility for its use.

DTC Toolbox v1.6

RELEASE NOTES:
-General UI improvements and support for various screen resolutions.
-Added button to open loaded bin folder.
-Added user preferences menu with options for font size, default order, row width, etc...
-Added recent file menu for quick loading of previous files.
-Added right click menu with disable and revert selected functions for faster changes.

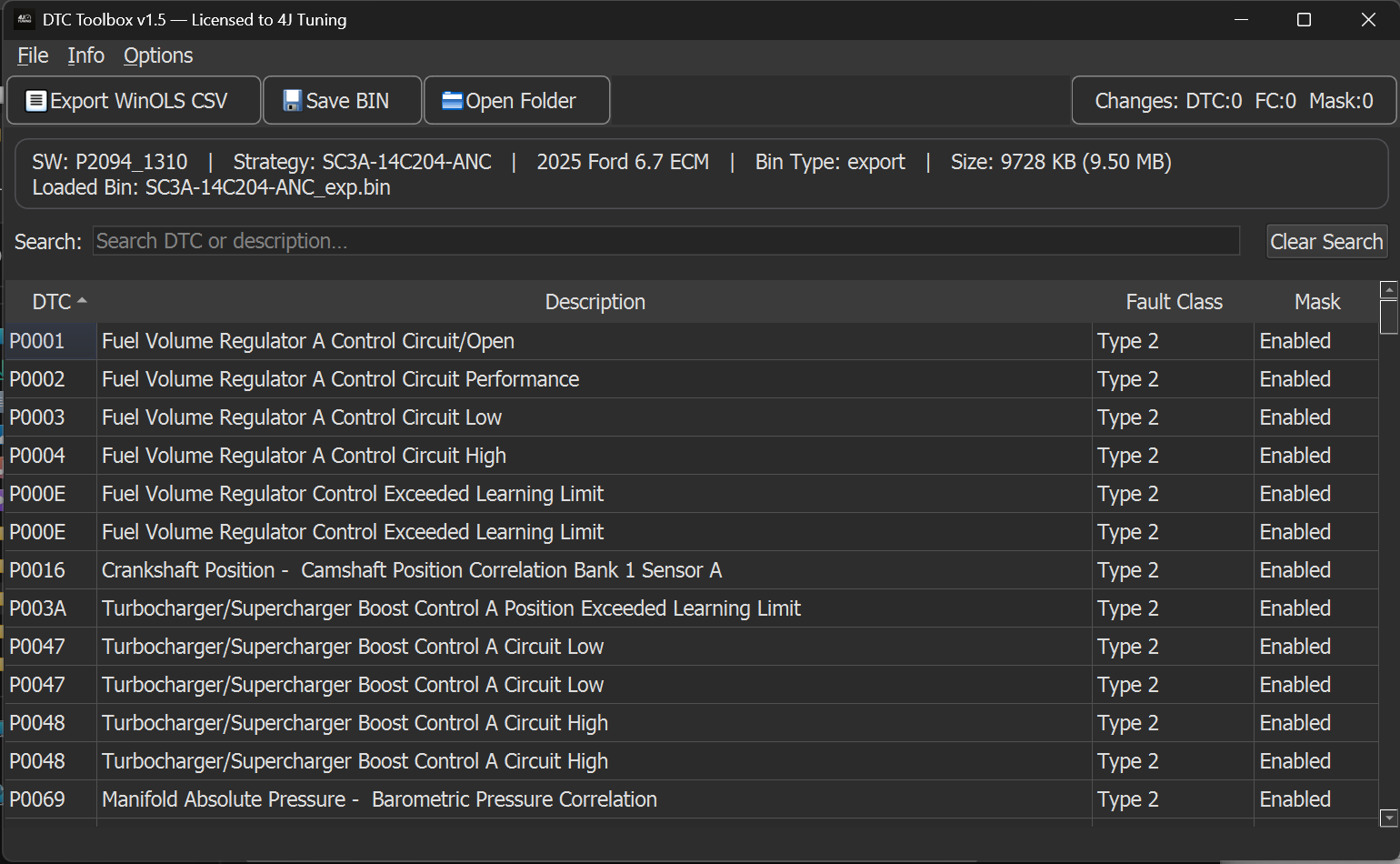

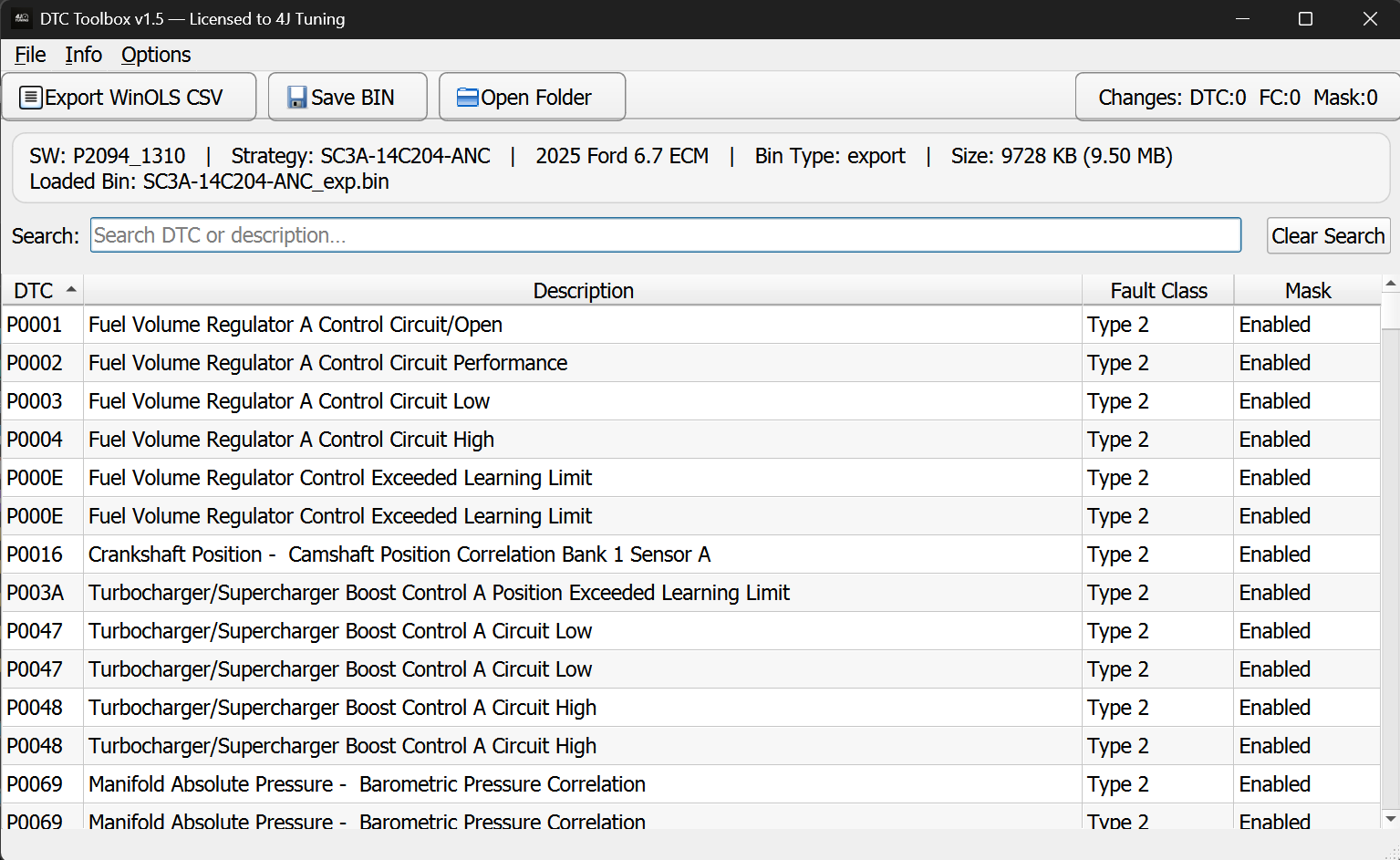

-Fixed dark/light mode bugs and added detection for system theme.
-Added single click editing. Activate it in the preferences menu.
-Various other fixes and optimizations.
-Extensive DTC library update.
-Added changelog. Click change log button to open log and save.
-Optimized loaded bin information display.

Support List:

• 2011 Ford 6.7 Powerstroke P545_D2_1467 EDC17CP05
• 2012 Ford 6.7 Powerstroke P545_D2_1530 EDC17CP05
• 2013 Ford 6.7 Powerstroke P1122_C5_702 EDC17CP05
• 2013 Ford 6.7 Powerstroke P1122_C5_742 EDC17CP05
• 2014 Ford 6.7 Powerstroke P1122_C5_730 EDC17CP05
• 2014 Ford 6.7 Powerstroke P1122_C5_760 EDC17CP05
• 2015 Ford 6.7 Powerstroke P1356_C5_512 EDC17CP05
• 2015 Ford 6.7 Powerstroke P1356_C5_521 EDC17CP05
• 2017 Ford 6.7 Powerstroke P1417_812 EDC17CP65
• 2018 Ford 6.7 Powerstroke P1417_1000 EDC17CP65
• 2018 Ford 6.7 Powerstroke P1417_1030 EDC17CP65
• 2019 Ford 6.7 Powerstroke P1417_1050 EDC17CP65
• 2019 Ford 6.7 Powerstroke P1417_1060 EDC17CP65
• 2020 Ford 6.7 Powerstroke P1864_730 MD1CP006
• 2020 Ford 6.7 Powerstroke P1864_731 MD1CP006
• 2020 Ford 6.7 Powerstroke P1864_732 MD1CP006
• 2021 Ford 6.7 Powerstroke P1864_751 MD1CP006
• 2021 Ford 6.7 Powerstroke P1864_800 MD1CP006
• 2022 Ford 6.7 Powerstroke P1864_810 MD1CP006
• 2022 Ford 6.7 Powerstroke P1864_820 MD1CP006
• 2021 Ford 6.7 Powerstroke P1864_840 MD1CP006
• 2023 Ford 6.7 Powerstroke P2094_701 MD1CP062
• 2023 Ford 6.7 Powerstroke P2094_1100 MD1CP062
• 2023 Ford 6.7 Powerstroke P2094_1110 MD1CP062
• 2024 Ford 6.7 Powerstroke P2094_1200 MD1CP062
• 2025 Ford 6.7 Powerstroke P2094_1310 MD1CP062
• 2015-16 GM 6.6 Duramax LML 654_EDC17CP18_V1603_042_0 EDC17CP18
• 2014-20 Dodge/Jeep 3.0 EcoDiesel 1060_EDC17C79_W15Z EDC17C79
• 2014-20 Dodge/Jeep 3.0 EcoDiesel 1060_EDC17C79_W221 EDC17C79
• 2014-20 Dodge/Jeep 3.0 EcoDiesel 1060_EDC17C79_W270 EDC17C79
• 2014-20 Dodge/Jeep 3.0 EcoDiesel 1060_EDC17C79_W299 EDC17C79
• 2014-20 Dodge/Jeep 3.0 EcoDiesel 1060_EDC17C79_W522 EDC17C79

Support:
sales@4jtuning.com
www.4jtuning.com

© 2025 4J Tuning. All rights reserved.

Licenses are valid for 2 years from the creation date.

Please specify what name you would like for your license as it will display at all times on the app header, if no specification is made, customer first name will be used.

We will keep working to expand support and send out updates to customers periodically. If you have a binary file that is not on this list, please contact us and we will get it added.
